BSI Kitemarked to PAS24: 2022- KM81580

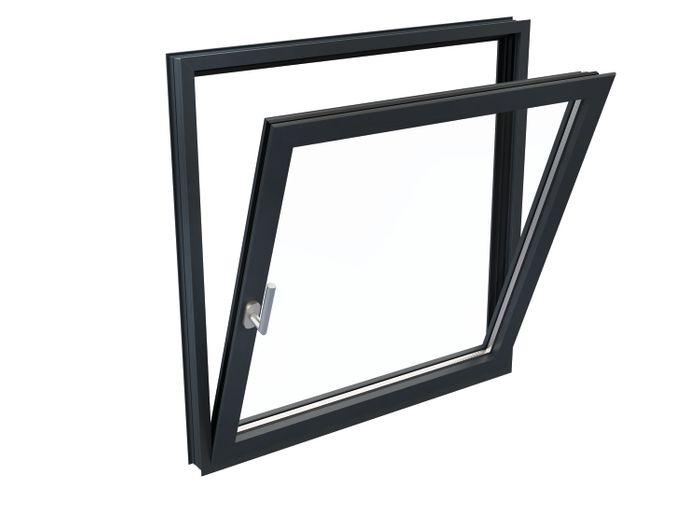

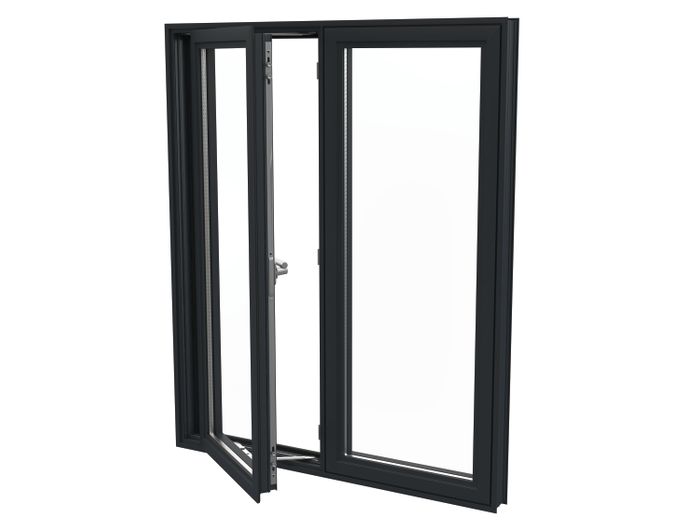

Designed for use as fixed lights and open-out windows, internally or externally beaded, for domestic and light commercial applications. Tilt-Turn designed for use as fixed-lights and open-in windows. Internally beaded.

Thermal breaks are formed with polyamide strips PA 6.6 25 reinforced with glass fibre, fitted between aluminium extrusions. All profiles are extruded from aluminium alloy 6060/6063 T5/T6 and comply with the recommendations of BS EN 12020-2/BS 755-9. Profiles can be Electrostatic powder coat finished in a range of RAL colours to APA Qualicoat guidelines with the option of BI-colour, different internal and external colours. Other finishes include anodised in satin with EWAA/EURAS-Qualanod quality label. All open-out vents are hung on concealed stainless steel variable angle friction stays and fitted with espagnolette locking mechanisms.

Glazing conforms to the requirements of BS 6262 and Part ‘N’ of the Building Regulations for both thickness and type.

Internal or external beads and gaskets will accommodate 24mm, 28mm, 32mm, 36mm, 40mm and 45mm units depending on profiles selected.

Windows are manufactured according to customer requirements from a range of standard profiles and are designed to incorporate a range of vent openings and various options, therefore it is advisable to contact Smart Systems technical design department early in the design process.

Product tested to BS6375: Part 1. Weathertightness classification:

Air Permeability – Class 4 600Pa (open-out)             Class 4 600Pa (open-in)

Watertightness – Class E 1200Pa (open-out)            Class 9A 600Pa (open-in)

Wind resistance –Class AE 2400Pa (open-out)         Class BE 2400Pa (open-in)

Windows are manufactured to the required design to within the following maximum limitations (subject to location).

Side opening – Max width    600mm or 865 with ME Egress hinge. Weight limit dependent upon gear and profile selection.

Top Opening – Max height 1500mm. Weight limit dependent upon gear and profile selection.
